Effective design of letters suitable especially for business passages
and rallies. The body of the letters is offset by means of spacing screws
and the light flow is directed to the base…

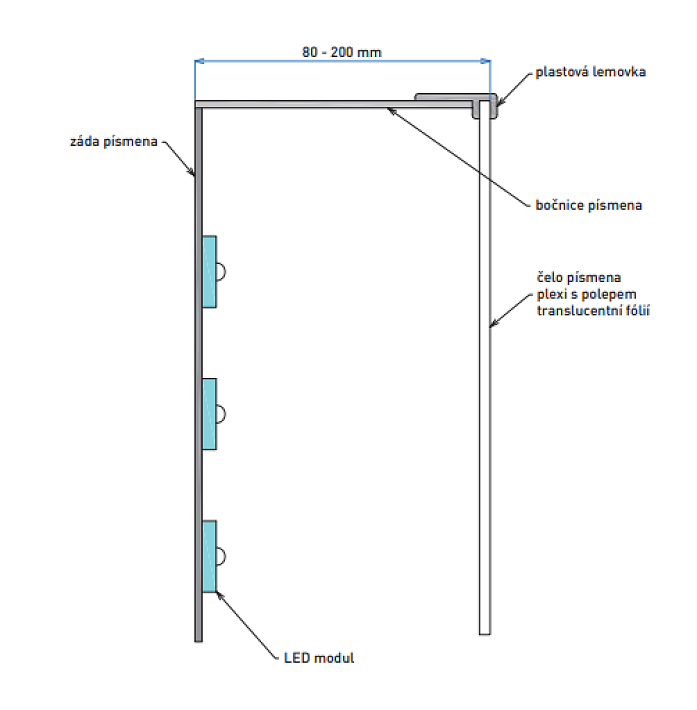

Profile 5 (headlight, plastic trim)

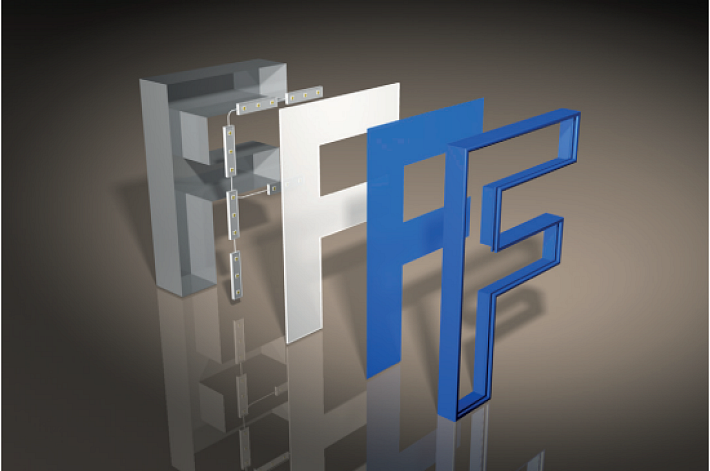

Basic type of illuminated letters used primarily as an identifier, ideal for exterior visual communication. The body of the letters
is made up of metal sides and backs combined with a Plexiglas
face. The illuminated front face is attached to the sidewalls by
plastic trim. Profile 5 is suitable for sizes up to 1200 mm. Illumination by LED modules.
Technical parameters
| Hull material | aluminum, stainless steel |
| Hull colour | RAL, according to customer's request |
| Front material | plexi + foil, coloured plexi |
| Lemovka | PVC |
| Light source | LED modules |
| Character depth | 80 - 200 mm |
| Character height | 0.3 - 1.2 m |
